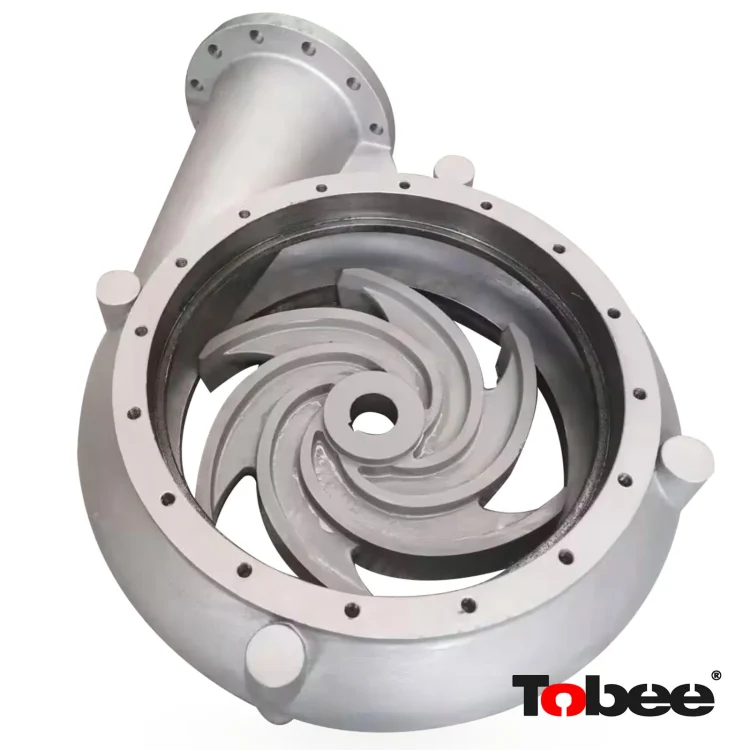

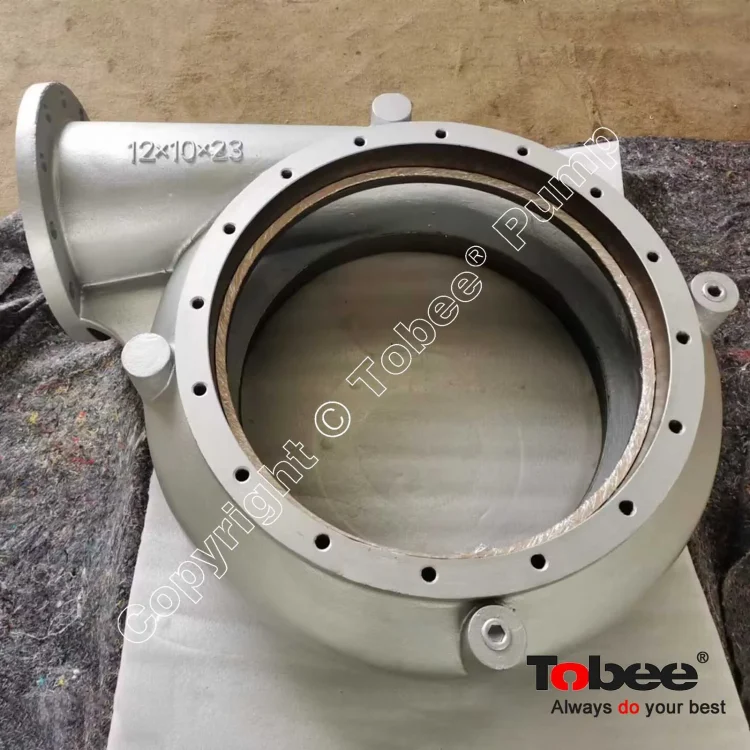

Sandman® 25308-01-AY Casing and 25010-Y0-AY Impeller are one of wear parts used in Mission XP 12x10x23 centrifugal pumps. These high-chrome wear parts are designed for abrasive slurry, fracturing fluids, and high-volume transfer applications in oilfield and industrial services.

Sandman 12x10x23 XP Frac Pump Design Features:
• Full-open wide impeller design improves solids handling.
• Long life no adjustment mechanical seal available for near zero leakage.
• Thick, concentric casing with replaceable casing wear pad.
• Hard iron and high chrome alloy material optional.
• Large power to ensure large flow rates and head pressure up to 500ft.
• Small footprint design is versatile for mobile and stationary application.
• Working for fracking industrial standard and blending application.
• Each casing is approved pressure test prior to delivery.
• Heat treatment was done to improve the hardness and wear-resistance to ensure a longer working life.
• Mechanical seals can be Tungsten-Tungsten, Tungsten-Silicone, or Silicone-Carbide, all with highly polish sealing face and piton bellow and stainless steel springs.

Sandman® Magnum XP Pump Applications:
✔ Hydraulic fracturing blender units
✔ Frac discharge pumps
✔ Sand transfer systems
✔ Drilling mud circulation
✔ Slurry transfer
✔ Dredging operations
✔ Mining slurries
✔ Industrial waste slurries
✔ Paper pulp and ash handling
