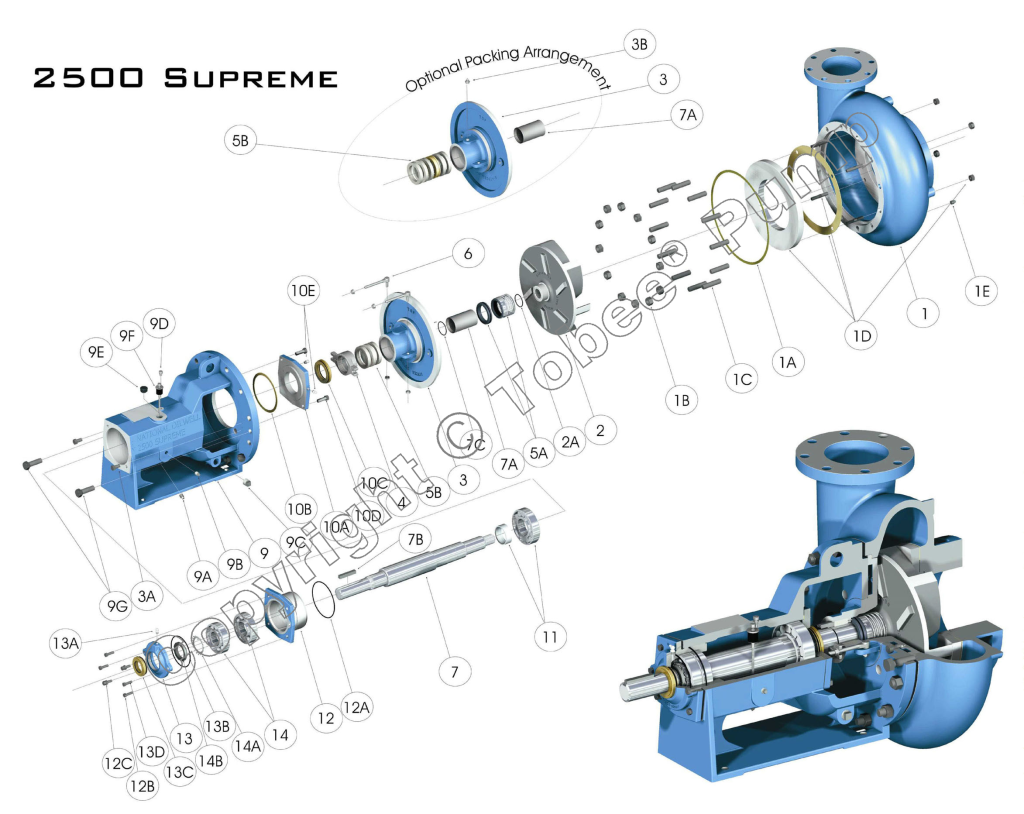

Mission 2500 Supreme Pump Parts List

ItemQtyPart NumberProcess #DescriptionMaterial ItemQtyPart NumberProcess #DescriptionMaterial
1*1See BelowSee BelowCasing, Includes 1 thru 1EHard Iron 12A1H7496-253648402295Seal, O.B. Brg HousingBuna-n
1A110399-46-1648403012Gasket, CasingVellumoid 12B4H3861-1383861-138Bolts, O.B. Brg. HousingStl
1B123932-613932-61HNut, CasingStainless Steel 12C2H3932-62658404702Nut, O.B. Brg. Housing JamStl
1C12H2507-3648401115Stud, CasingStl 131H20617A20617HCover, O.B. BearingDuctile Iron
1D*1See BelowSee BelowWear Pad, Includes stds, nuts & gskt  13A1 661010020Grease Zerk, O.B. Brg. Cvr.Stl
1E18505-2H601474703Plug, Casing DrainStl 13B1H7496-26072200017O-ring, O.B. Bearing CoverBuna-n
2*1See BelowSee BelowImpellerHard Iron 13C1H2564-32564-3HLabyrinth Seal, O.B. Brg. Cvr.Buna-n
2A1H19110-72648405082Seal, ImpellerViton 13D2H3861-1393861-139-4Bolt, O.B. Brg. CoverStainless Steel
3*#1H22223-01-3022223HStuffing box, Mech. SealDuctile Hard Iron 142H20616-1S648408201SBearing, O.B. (2 Req’d)Vendor
3*&1H20614-01-3020614HStuffing Box, PackedDuctile Hard Iron 14A1H6124-4648402105Lockwasher, O.B. BearingStl
3A2H3861-1173861-117Bolt, Stuffing boxStl 14B1H6123-4648402055Lucknut, O.B. BearingStl
3B&119368-1H19368-1HGrease FittingStl Casings – Includes Studs, Nuts & Gasket
42H20622A20622AHGland Assy., PackingStainless Steel 1*1H19203-01-30A19203AHCasing, 3x2x13Hard Iron
5A#1H22451-1A22451KSeal, MechanicalTungsten Carbide 1*1H19205-01-30A19205AHCasing, 4x3x13,w/ wear padHard Iron
5B~18264-24-OB648402600Packing, Shaft  1*1H19222-01-30A19222AHCasing, 5x4x14,w/ wear padHard Iron
6220629601102494BOLT,GLANDStl 1*1H19122-01-30A19122AHCasing, 6x5x11,w/ wear padHard Iron
71H20612-02-33646490557ShaftAISI 4140 1*1H19123-01-30A19123AHCasing, 6x5x14,w/ wear padHard Iron
7A#1H20613-21A646492505Sleeve, Shaft (M.S. Pump)416SS 1*1H19763-01-30A19763AHCasing, 8x6x11,w/ wear padHard Iron
7A&1H20613-21G-7A646490656Sleeve, Shaft (Pack Pump)416SS/Ceramic 1*1H19117-01-30A19117AHCasing, 8x6x14,w/ wear padHard Iron
7B1H4372-5-21601212392Key, Shaft416ss 1*1H20937-01-30A20937AHCasing, 10x8x14,w/ wear padHard Iron
7C123444-01-72648415156Seal, Shaft SleeveViton Impellers and Casing Wear Pads
8122210-1A641116108Deflector AssemblyBronze 2*1H19204-XX-30VariesImpeller, 3x2x13 OpenDuctile Hard Iron
91H1744417444HFrame, Grease LubricatedCast Iron 2*1H19206-XX-30VariesImpeller, 4x3x13 OpenDuctile Hard Iron
9A!1H8505-18505-1Plug, Oil DrainIron 2*1H2523-XX-30VariesImpeller, 5x4x14 Semi OpenDuctile Hard Iron
9B!18505-2H601474703Plug, OilIron 2*1H2524-XX-30VariesImpeller, 6x5x11 Semi OpenDuctile Hard Iron
9C1 601474737Plug, Frame DrainIron 2*1H2524-XX-30VariesImpeller, 6x5x14 Semi OpenDuctile Hard Iron
9D1H8267-1601473689BreatherStl 2*1H2524-XX-30VariesImpeller, 8x6x11 Semi OpenDuctile Hard Iron
9E1H2565-12565-1HPlug, Oil FillPlastic 2*1H2525-A0-30VariesImpeller, 8x6x14 Semi OpenDuctile Hard Iron
9F!1H2539-32539-3HDip StickStl 2*1H2526-XX-30VariesImpeller, 10x8x14 Semi OpenDuctile Hard Iron
9G2H2538-12538-1HBolt, Casing JackStl 1E1H2501-01-30A2501-37AHWear Pad, 4X3X13 CasingDuctile Hard Iron
10A1H1795017950HCover, Inboard BearingIron 1E1H2502-01-30A2502-37AHWear Pad, 5X4X14 CasingDuctile Hard Iron
10B1H20625648408706Gasket, I.B. Brg. CoverVegetable Fiber 1E1H2503-01-30A2503-37AHWear Pad, 6X5X11 CasingDuctile Hard Iron
10C1H2564-42564-4HLabyrinth Seal, IB Brg CvrBuna-n 1E1H2504-01-30A2504-37AHWear Pad, 6X5X14 CasingDuctile Hard Iron
10D2H3861-13861-1HBolt, I.B. Brg. CoverStl 1E1H2505-01-30A2505-37AHWear Pad, 8X6X11 CasingDuctile Hard Iron
10E1 661010033Grease FittingStl 1E1H2506-01-30A2506-37AHWear Pad, 8X6X14 CasingDuctile Hard Iron
111N/A661009010Bearing, InboardVendor 1E1H2527-01-30A2527-37AHWear Pad, 10X8X14 CasingDuctile Hard Iron
121H20624-01-0120624HHousing, O.B. BearingIron
