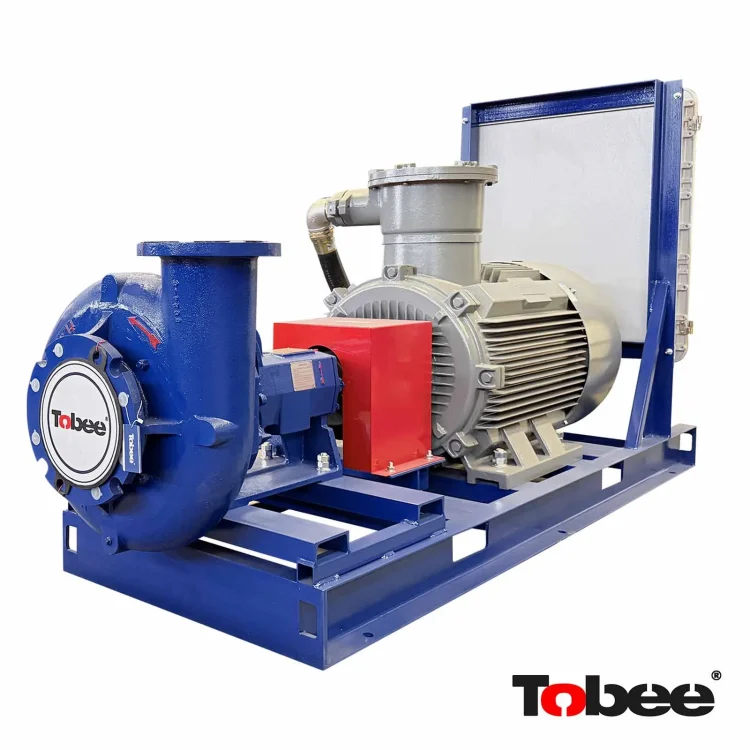

Sandman® 2500-8x6x14 centrifugal pump is a heavy-duty C-pump used in drilling and oilfield operations, specifically within Mud Mixing Systems and Solids Control.

Core Applications in Mud Systems:
In mud mixing systems, these pumps are primarily responsible for conveying high-viscosity and abrasive fluids (specifically, drilling mud or slurry).
• Mud Mixing and Hoppers: Provide the necessary pressure and flow rate to mix and inject dry additives (such as barite powder or bentonite) into the fluid stream.
• Charge Pumping: Serve as feed pumps for the main triplex mud pumps to prevent cavitation.
• Desilting and Desanding: Function as feed pumps for hydrocyclone equipment within solids control systems.
• Circulation: Responsible for transferring mud between active mud tanks and reserve mud tanks.

Design Features:
• Versatile stuffing box
• Thick, strong, concentric casing with replaceable casing wear pad
• Casing gasket receded for protection.
• Replaceable stuffing box cover with dual stuffing box bolts
• Long-life, no-adjustment mechanical seal available for near zero leakage
• Replaceable shaft sleeve
• Solid Frame base
• Labyrinth seals for maximum bearing protection
• Full pipe diameter entrance for minimum turbulence and maximum efficiency
• Wide semi-open impeller creates lower axial thrust for improved bearing life
• All sizes feature the same power end

Mission 8x6x14 Pump Performance Parameters:
